Network Embedded System Board RK3399 Android 7.0 Infrared Touch Interface
Industrial Android Motherboard 4k Output Lvds Embedded Computer Board For Industrial Control Host
Overview:
Intelligent industrial one board, using Rockchip RK3399 six-core chip program to support Google Android 7.0 above system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. For intelligent remote network control: industrial, medical, large advertising machine, educational video terminals and other equipment.
Characteristic:
- Support 7-inch to 84-inch LVDS interface display (point-to-point full HD display 1920 * 1080).
- A variety of interactive mode interface: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
- A variety of network interfaces: Ethernet, wireless WiFi, Bluetooth.
- Multi-channel USB interface, serial port, IO port output.
- Support 4K video play and HDMI 2.0 HD output.
Strong anti-electromagnetic interference and electromagnetic compatibility.
Basic hardware specifications:
| CPU | Rockchip RK3399 dual core Cortex-A72+quad-core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| RAM | DDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional(Label 8GB) |
| Display interface | LVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display |
| EDP screen interface, support for resolution 1920x1080 |
| Onboard backlight | Support 3.3V/5V/12V Optional |
| Touch screen | Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch). Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Internet | With RJ45 interface, support for 10/100 Ethernet |
| With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0 |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing |
| Real Time Clock | Built-in real-time clock battery |
| Interface equipment | Support MIPI interface camera, up to 500W pixels |
| Support USB camera |
| 4 USB HOST, 1 USB OTG (support POE power supply) |
| 3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.) |
| 3 IO test port |
| SD card, maximum support 64GB |
| Class D amplifier: 1.5W * 2 8 ohm, support for the microphone |
| HDMI 2.0 output |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing. |
| Picture | Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic software specifications:
| Operating system | Google Android 7.0 |
| Basic software features | Web browsing, web chat, e-mail, e-books, resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multi-national voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| | Alarm Clock |
| | Calculator |
| | Note |
| | Weather + clock |
| | Recording |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input method | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| | Email |
| | Gmail |
| System Management | APK Installer |
| | Original Android system, open root privileges, product development can be customized |
| | Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended |

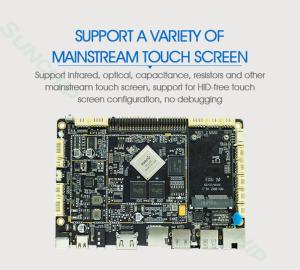

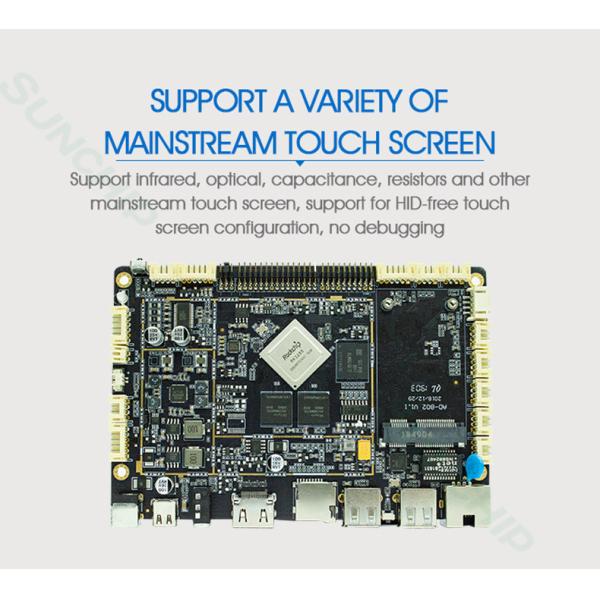

Product images:
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
